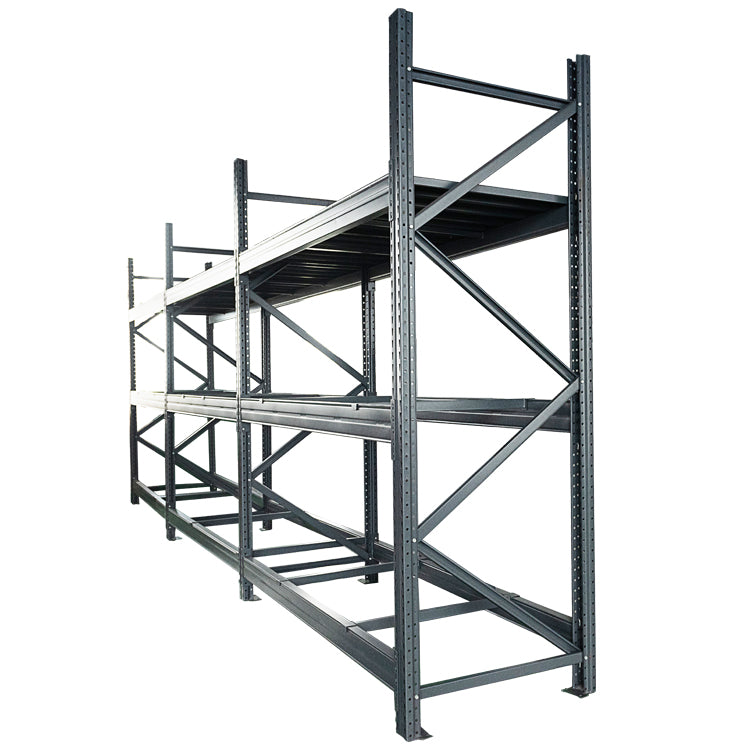

Heavy-Duty Warehouse Rack

ITEM NO.: BF-03S026

NAME: Heavy-duty warehouse rack

SPECIFICATION: L2500*W1000*H3000-6000mm (Acceptable of required size)

Layers: 2-5

Main material thickness: Post 2.0 mm/Beam 2.0 mm/Layer board 0.7-1.0mm

Load-bearing: 1000-3000kg/layer

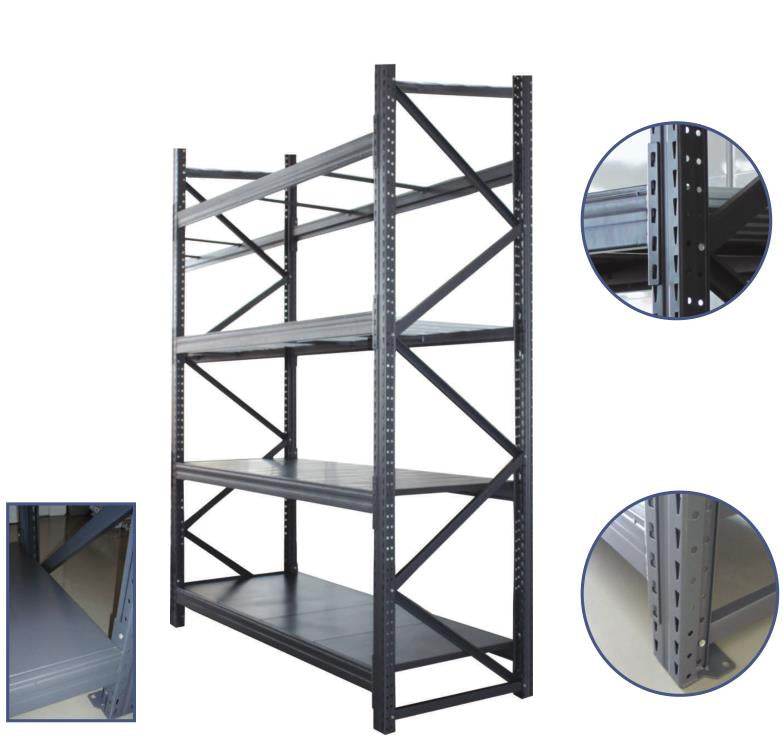

Heavy-duty warehouse rack, also commonly known as beam-type shelves or cargo-position shelves. The goods can be placed up and down in multiple layers, saving warehouse space. The column and diagonal bracing are connected by bolts, which are flexible in disassembly and assembly and have a more stable structure. The crossbeam and column plug-in structure is practical, convenient, safe, and reliable. The back of the crossbeam column link is fixed with ear-type safety pins to prevent the crossbeam from falling off due to gravity impact. The beams and columns are connected by safety buckles. Increase shelf safety and stability. The heavy-duty storage shelves are made of high-quality steel plate roll forming, and the beams are made of high-quality square steel, which has a large bearing capacity, is not easy to deform, is reliable in connection, and is easy to disassemble. The surfaces of all shelves are treated by pickling, phosphating, electrostatic spraying and other processes to prevent corrosion. It is rust-proof and can be applied to various types of goods. The height of the beam can be adjusted according to the size of the goods. This shelf has good load capacity, easy assembly, and diversification. The single-layer load-bearing capacity can reach (1-3) tons. Pallets can be stored, and they can also be configured. Laminate use. Usually, the goods are stored on the shelves after being assembled through storage equipment such as pallets and storage cages. Heavy-duty storage shelves are one of the most common and widely used shelves, suitable for most warehouses or product goods. With 100% random picking characteristics of goods. Handling machinery such as forklifts can reach any cargo location for storage operations, and storage operations are convenient and fast! Storage operations are carried out with mechanical handling equipment. The specification of the heavy-duty shelf column is a 70×90×2.0 mm special shelf column profile. It is made of high-quality strip steel, rolled by an automatic rolling mill, punched by a punch, and cut according to the height specified by the customer. It is a standard product specially produced for shelves in the cold bending industry. After repurchasing, cut the material according to the customer's size, weld the rack to connect the special column grab, and polish it to form a semi-finished product.
